CloudLight 800G QSFP-DD SR8

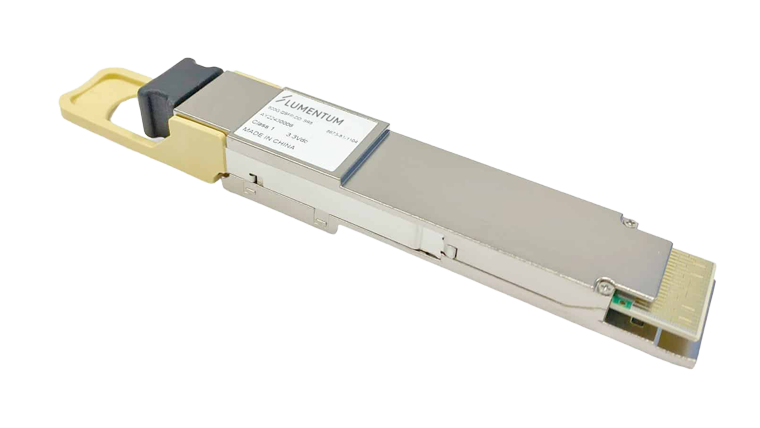

800G QSFP-DD SR8

The Lumentum CloudLight™ 800G QSFP-DD SR8 is a pluggable transceiver for short-range data communication and interconnect applications. Each transceiver has eight duplex channels with 800 Gbps aggregate bandwidth. Each channel operates with PAM4 modulation scheme at 53.125 Gbaud rate, and up to 100 m using OM4 fiber.

Features

  • QSFP-DD MSA and 800G Ethernet compliant
  • 800GAUI-8 electrical interface
  • Bidirectional operation: 8xTx and 8x Rx at 106.25 Gbps with 53.125 GBaud PAM4 modulation scheme
  • Built-in DSP
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Power consumption 13 W per end
  • Transmission distance up to 100 m with OM4 fiber
  • Laser eye safety Class 1
  • CMIS 5.0 management interface


Applications

  • 800G Ethernet interconnect


Specifications

  • Data rate: 800G (8 x 100 Gbps)
  • Supply voltage: 3.3 V
  • Power consumption 13 W
  • Operating case temperature: 0°C – 70°C
  • Reach 100 m with OM4 fiber
