CloudLight 800G QSFP-DD DR8

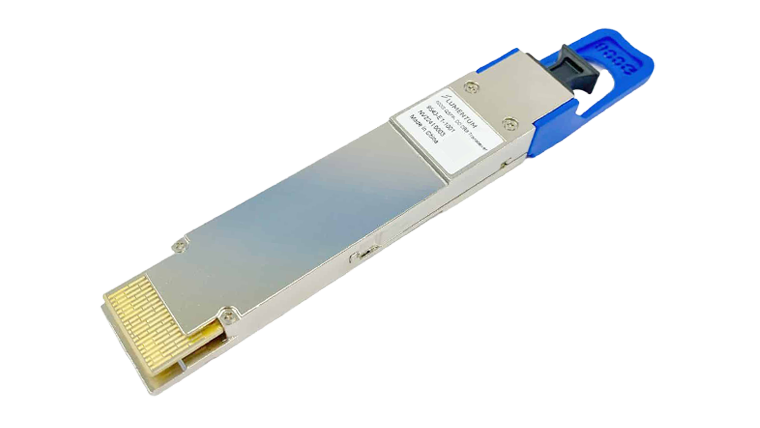

800G QSFP-DD DR8

The Lumentum CloudLight™ pluggable 800G QSFP-DD optical module, designed for 500 m optical communication applications, complies with IEEE 802.3bs and QSFP-DD MSA 6.2 version standards.

Features

  • Hot-pluggable QSFP-DD form factor with non-hermetic package
  • Utilizes 112 Gbps EML and 5 nm DSP
  • Incorporates TEC to control the temperature of EML
  • Supports 500 m transmission with SM fiber and host KP4 FEC
  • Operates at 106.25 Gbps (PAM4) per channel
  • Supports MPO-16 connector
  • Compliant with 800GAUI-8 electrical interface
  • Compliant with IEEE 802.3bs and QSFP-DD MSA 6.2version
  • Supports receiver signal strength indicator (RSSI) and transmitter output power monitoring (TOPM)
  • CMIS 5.2 compliant


Applications

  • 800G Ethernet
  • Data center optical interconnect


Specifications

  • Data rate: 800G
  • Supply voltage: 3.3 V
  • Power consumption: ≤16 W
  • Wavelength: 1310 nm (EML)
  • Operating case temperature 20°C – 70°C
  • Uses SM fiber
