AOC Breakout

CloudLight 800G QSFP-DD 2x400G QSFP112 AOC

800G-QSFP-DD-2x400G-QSFP112-AOC

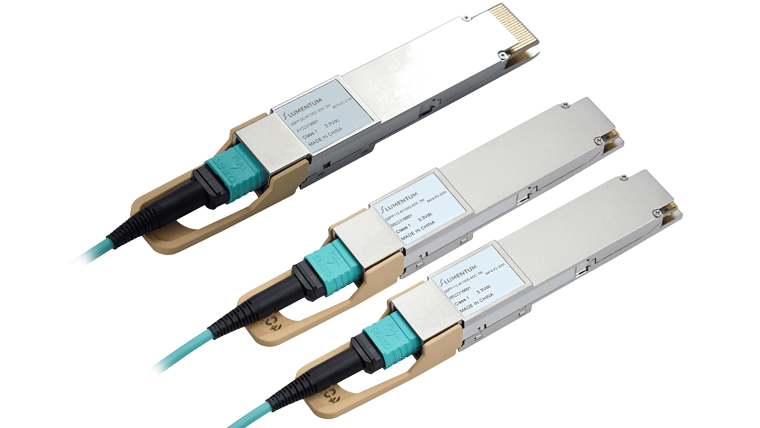

The Lumentum CloudLight™ 800G to 2 x 400G fanout active optical cable (AOC) is for short-range data communication and interconnect applications. The AOC has one QSFP-DD end connected to two QSFP112 ends. Each channel operates up to 106 Gbps and up to 100 m using OM4 fiber.

Features

  • QSFP-DD MSA, QSFP112 MSA and 800G Ethernet compliant
  • 800GAUI-8 / 400GAUI-4 electrical interface
  • Bidirectional operation: 8xTx and 8x Rx at 106.25 Gbps with 53.125 Gbaud PAM4 modulation scheme
  • Built-in DSP
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Power consumption 13 W (QSFP-DD) 7.8 W (QSFP112) per end
  • Transmission distance up to 100 m with OM4 fiber
  • Laser eye safety class 1
  • CMIS 5.0 management interface


Applications

  • 800G Ethernet interconnect


Specifications

  • Data rate: 800G (8 x 100 Gbps)
  • Supply voltage: 3.3 V
  • Power consumption 13 W
  • Operating case temperature 0°C – 70°C
  • Reach 100 m with OM4 fiber
