CloudLight 56G QSFP+ AOC

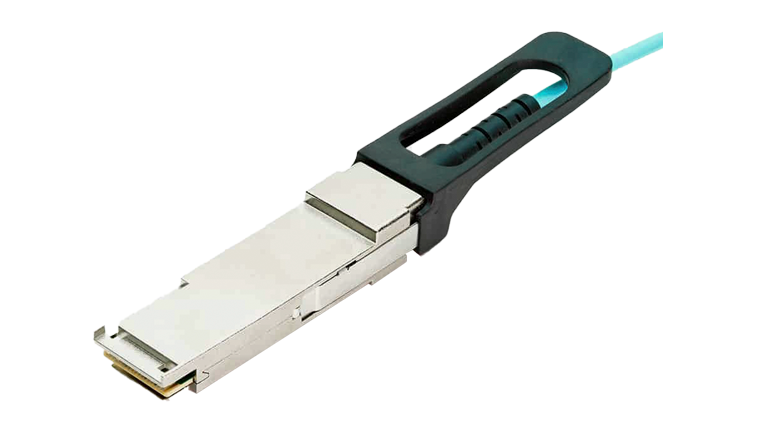

56G QSFP+ AOC

The Lumentum CloudLight™ QSFP Active Optical Cable (AOC) is a 56 Gbps (4 x 14 Gbps) solution to 4x FDR InfiniBand and high-performance computing applications. The integrated cable transmits 4 x 14 Gbps data in each direction over a loose tube fiber with distance up to 100 m. The AOC is QSFP+ MSA compliance, low power consumption and lightweight.

Features

  • Compliant to InfiniBand Architecture Specification (release 1.3) and SFF-8436
  • Four independent Tx and Rx lanes, each operating to 14 Gbps
  • Bidirectional 56G operation
  • Supports transmission distance up to 100 m
  • Backward-compatible with QDR (4 x 10 Gbps), DDR (4 x 5 Gbps) and SDR (4 x 2.5 Gbps) rates
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C to 70°C
  • I2C management interface
  • Low power consumption, 0.7 W per end
  • Hot pluggable


Applications

  • InfiniBand FDR interconnects
  • Datacom and telecom switch connectivity
  • Router backplane connections
  • High performance computing


Specifications

  • Data rate: 56G (4 x 14 Gbps)
  • Supply voltage: 3.3 V
  • Power consumption: 0.7 W
  • Operating case temperature: 0°C to 70°C
  • Reach: 100 m with OM2
