CloudLight 400G QSFP-DD-OSFP AOC

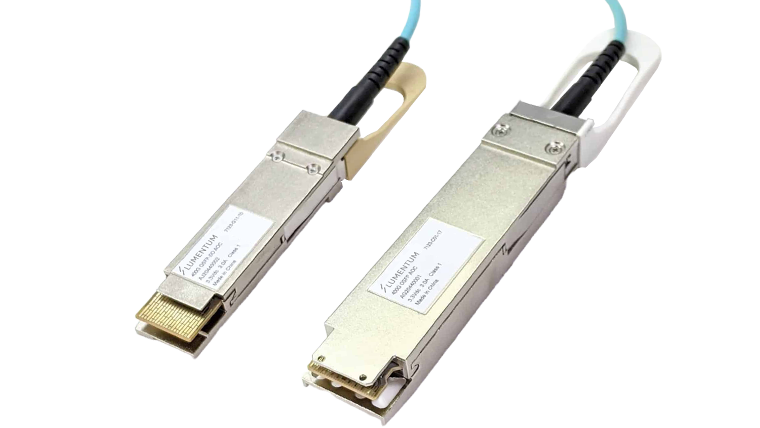

400G QSFP-DD-OSFP AOC

The Lumentum CloudLight™ QSFP-DD to OSFP active optical cable (AOC) is for short-range data communication and interconnect applications. The AOC has one QSFP-DD end and one OSFP end. Each channel operates up to 53 Gbps and up to 100 m using OM3 fiber.

Features

  • Compliant with IEEE 802.3bs 400GBASE-SR8 and CDAUI-8
  • Bidirectional operation: 8x Tx, and 8x Rx at 56 Gbps with 28G PAM4 modulation scheme for each AOC
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Power consumption <9.5 W per end
  • Transmission distance up to 100 m with OM3 MM fiber
  • Laser eye safety Class 1
  • CMIS management interface


Applications

  • Connectivity between QSFP-DD and OSFP ports


Specifications

  • Data rate: 400G (8 x 50 Gbps)
  • Supply voltage: 3.3 V
  • Power consumption: 9.5 W
  • Operating case temperature: 0°C – 70°C
  • Reach: 100 m with OM3 fiber
