CloudLight 400G QSFP-DD FR4

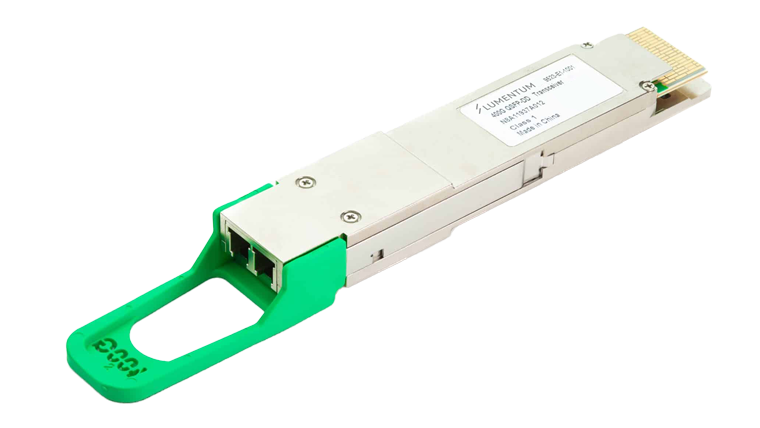

400G QSFP-DD FR4

The Lumentum CloudLight™ 400Gbps pluggable QSFP-DD optical module is designed for 2 km optical communication applications, and complies with IEEE 802.3bs and QSFP-DD MSA standards.

Features

  • Hot-pluggable QSFP-DD form factor with non-hermetic package
  • Designed with 56G uncooled EML and 16 nm DSP
  • Supports 500 m transmission with SM fiber and host KP4 FEC
  • Operate at 106.25 Gbps (PAM4) per channel
  • Compliant with IEEE 802.3bs and QSFP-DD MSA
  • Supports receiver signal strength indicator (RSSI) and transmitter output power monitoring (TOPM)
  • LC connector integrated with optical Mux and Demux


Applications

  • 400G Ethernet
  • Data center optical interconnect


Specifications

  • Data rate: 400 Gbps
  • Supply voltage: 3.3 V
  • Power consumption: 12 W
  • Wavelength: 1270 / 1290 / 1310 / 1330 nm (EML)
  • Operating case temperature: 20°C – 70°C
  • Reach: 2 km over SM fiber
