CloudLight 400G QSFP-DD-2xQSFP56 AOC

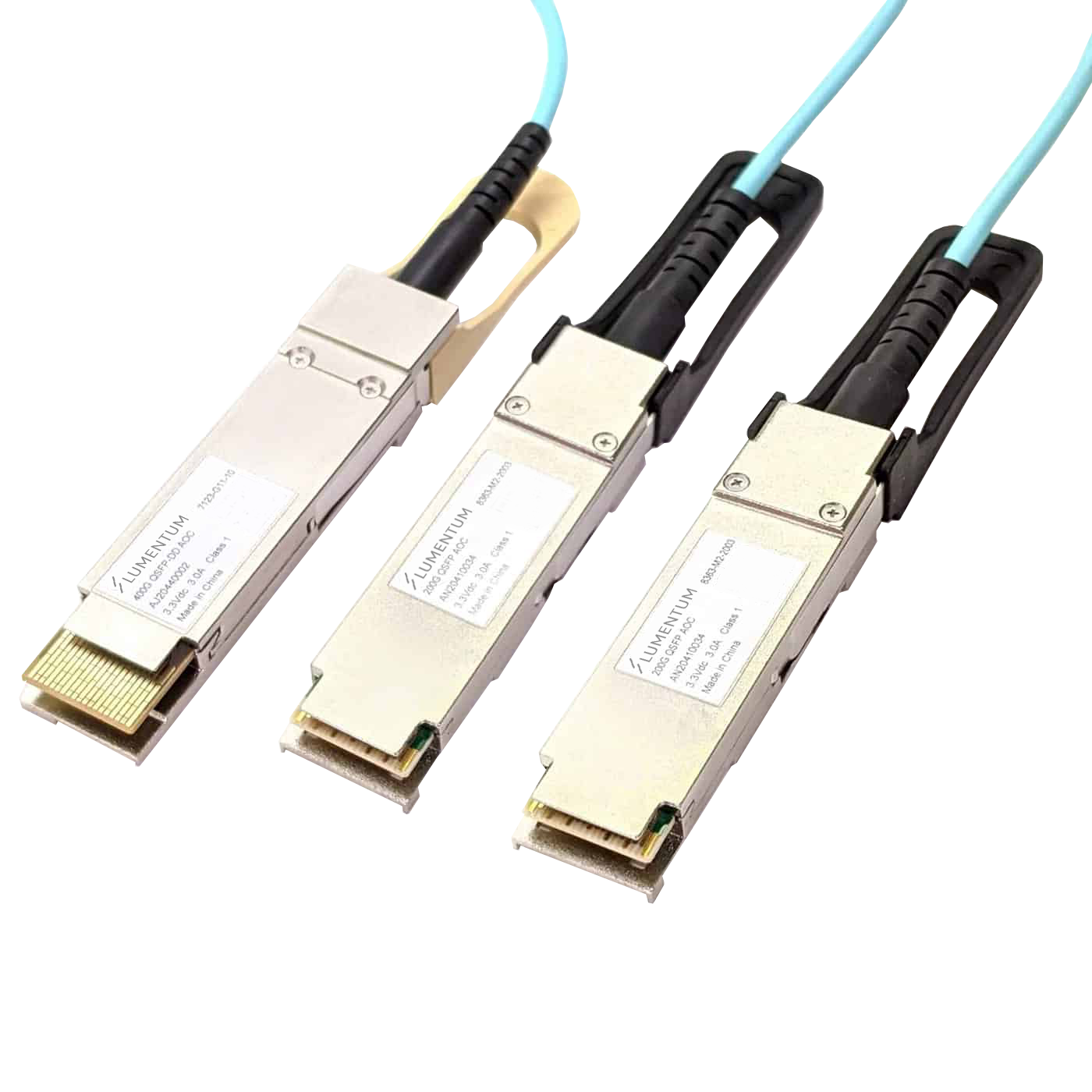

400G QSFP-DD-2xQSFP56 AOC

The Lumentum CloudLight™ 400G to 2 x 200G fanout active optical cable (AOC) is for short-range data communication and interconnect applications. The AOC has one QSFP-DD end connected to two QSFP56 ends. Each channel operates up to 53 Gbps and up to 100 m using OM3 fiber.

Features

  • Compliant with IEEE 802.3bs 400GBASE-SR8 and CDAUI-8
  • Bidirectional operation: 8x Tx, and 8x Rx at 56 Gbps with 28 Gbaud PAM4 modulation
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Transmission distance up to 100 m with OM3 MM fiber
  • Laser eye safety Class 1
  • Management interface based on CMIS (QSFP-DD) and SFF-8636 (QSFP56)


Applications

  • 200G aggregation
  • 200G to 400G connectivity
  • Switch-to-switch connections


Specifications

  • Data rate: QSFP-DD=400G (8 x 50G), QSFP56=200G (4 x 50G)
  • Supply voltage: 3.3 V
  • Power consumption: QSFP-DD=7.5 W, QSFP56=4.5 W
  • Operating case temperature: 0°C – 70°C
  • Reach: 100 m with OM3 fiber
