CloudLight 400G OSFP FR4

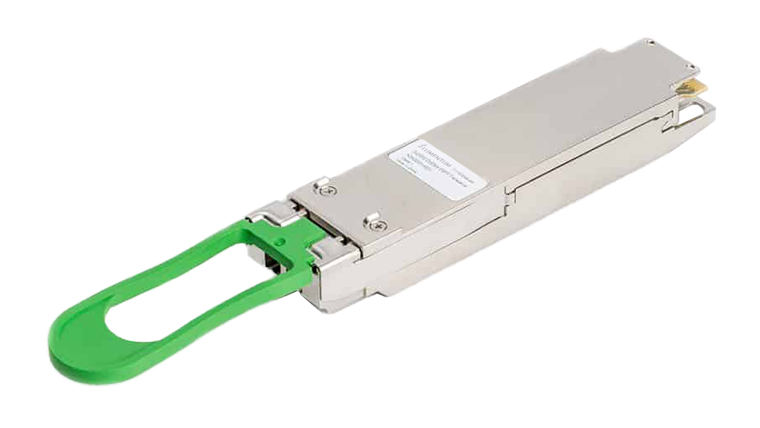

400G OSFP FR4

The Lumentum CloudLight™ 400Gbps pluggable OSFP optical module designed for 500 m optical communication applications, and complies with IEEE 802.3bs and QSFP-DD MSA standards.

Features

  • Hot-pluggable OSFP form factor with non-hermetic package
  • Utilizes 56 Gbaud uncooled EML and 16 nm DSP
  • Supports 500 m transmission over SM fiber with host KP4 FEC
  • Operates at 106.25 Gbps (PAM4) per channel
  • Compliant with 400GAUI-8 electrical interface
  • Compliant with IEEE 802.3bs and QSFP-DD MSA
  • Supports receiver signal strength indicator (RSSI) and transmitter output power monitoring (TOPM)
  • LC connector integrated with optical Mux and Demux


Applications

  • 400G Ethernet
  • Data center interconnect


Specifications

  • Data rate: 400 Gbps
  • Supply voltage: 3.3 V
  • Power consumption: 12 W
  • Wavelength: 1270/1290/1310/1330 nm (EML)
  • Operating case temperature: 0°C – 70°C
  • Reach: 2 km with SM fiber
