CloudLight 400G OSFP AOC

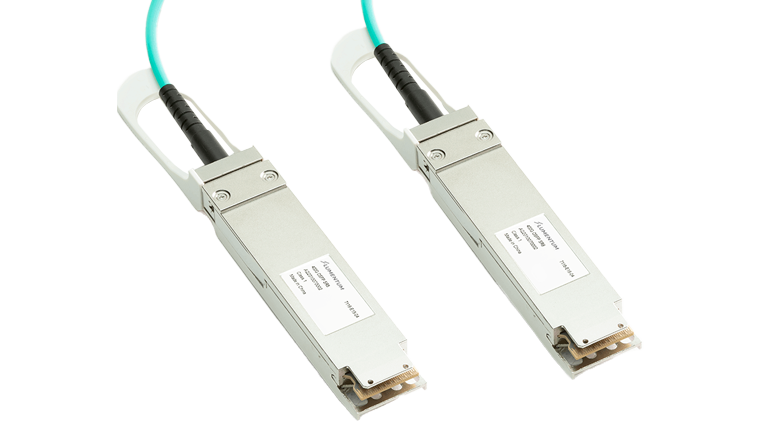

400G OSFP AOC

The Lumentum CloudLight™ 400G OSFP AOC is an active optical cable for short-range data communication and interconnect applications. Each AOC has eight duplex channels with 448 Gbps aggregate bandwidth. Each channel operates with PAM4 modulation scheme at 28G baud rate, and up to 100 m using OM3 fiber. The electrical interface uses a 60-contact edge type connector, compliant with OSFP MSA.

Features

  • Compliant with IEEE 802.3bs 400GBASE-SR8 and CDAUI-8
  • Bidirectional operation: 8 x Tx, and 8 x Rx at 56 Gbps with 28G PAM4 modulation scheme for each AOC
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Power consumption <9.5 W per end
  • Transmission distance up to 100 m with OM3 fiber
  • Laser eye safety Class 1
  • CMIS management interface


Applications

  • 400G Ethernet connectivity
  • Switch-to-switch interconnect


Specifications

  • Data rate: 400 Gbps
  • Supply voltage: 3.3 V
  • Power consumption: 9.5 W
  • Operating case temperature: 0°C – 70°C
  • Reach: 100 m with OM3 fiber
