CloudLight 300G CXP2 AOC

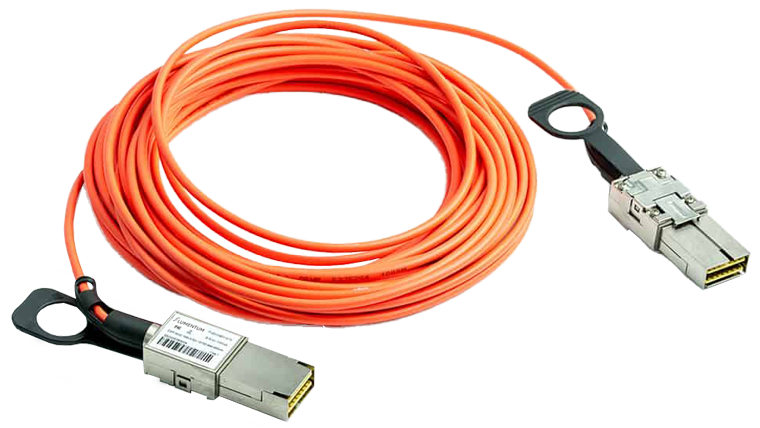

300G CXP2 AOC

The Lumentum CloudLight™ CXP2 Active Optical Cable (CXP AOC) is designed to support twelve bidirectional channels, parallel, high-speed for EDR data rate applications. The AOC supports 25 Gbps per channel for distances from 2 to 100 meters using laser optimized advance high-performance multimode fiber (OM3). The CXP form factor complies with the InfiniBand Architecture Specifications.

Features

• Compliant to InfiniBand Architecture Specification (release 1.3)
• Twelve independent Transmitters, and twelve independent Receivers, all operate at 25 Gbps
• Bidirectional operation, 12 x 25 Gbps per direction
• Support transmission distance up to 100 meters
• Backward-compatible with FDR (12 x 14 Gbps) rates
• Enabled by 850 nm VCSEL
• Operating case temperature 0°C to 70°C
• I2C communication bus
• Hot pluggable

Applications

• InfiniBand EDR (12 x 25 Gbps) interconnect
• Datacom and Telecom switch or route backplane connection
• High performance computing interconnect

Specification

• Data rate: 12 x 25 Gbps
• Supply voltage: 3.3 V
• Power consumption: 5.6 W
• Operating case temperature: 0°C – 70°C
• 100 m OM3
