SFP Transceivers

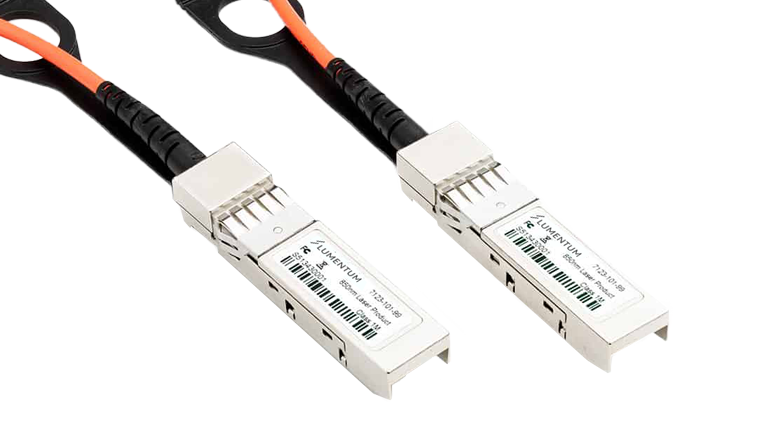

CloudLight 25G SFP28 AOC

25G SFP28 AOC

The Lumentum CloudLight™ SFP28 Active Optical Cable (AOC) is a SFP28 MSA compliant, low power consumption and lightweight solution for high-speed interconnect application over multimode fibers. The integrated cable transmits 25 Gbps data in each direction over a loose tube fiber with distance up to 100 m.

Features

  • Bidirectional 25G operation
  • Supports 25 Gbps transmission distance up to 100 m
  • Enabled by 850 nm VCSEL
  • Built-in CDR
  • Operating case temperature 0°C to 70°C
  • Single 3.3 V power supply
  • I2C management interface
  • Hot pluggable
  • RoHS-6 compliant
  • SFF-8431 compliant


Applications

  • 25G Ethernet
  • Datacom and telecom switch connections
  • Router backplane connectivity
  • High-performance computing


Specification

  • Data rate: 25 Gbps
  • Supply voltage: 3.3 V
  • Power consumption: 0.6 W
  • Operating case temperature: 0°C – 70°C
  • Reach: 100 m with OM3
