CloudLight 200G QSFP56 SR4

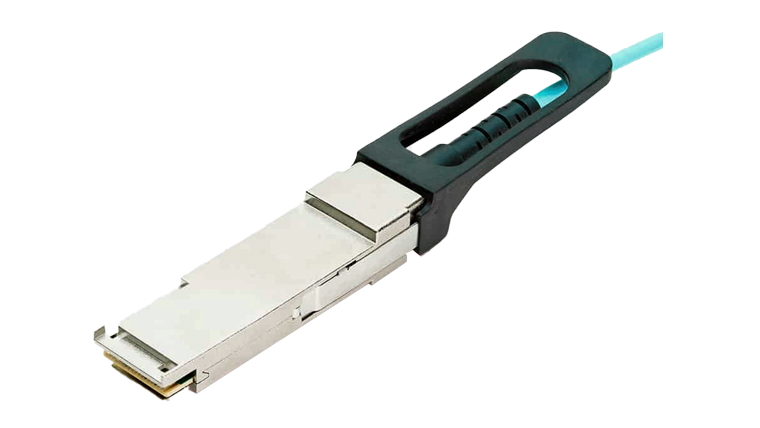

200G QSFP56 SR4

The Lumentum CloudLight™ 200G QSFP56 SR4 is a 200G QSFP56 SR4 pluggable transceiver. Each channel operates with PAM4 modulation scheme at 26.5625 Gbaud rate, and up to 100 m using OM3 fiber.

Features

  • QSFP-DD MSA compliant
  • Compliant with IEEE 802.3cd 200GBASE-SR4 and CEI-56G-VSR-PAM4
  • Bidirectional operation: 4x Tx, and 4x Rx at 53.125 Gbps with 26.5625 Gbaud PAM4 modulation scheme
  • Built in analog CDR
  • MPO-12 APC optical interface
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Max power consumption 4 W per end
  • Transmission distance up to 100 m with OM3 MM fiber
  • Laser eye safety Class 1M
  • Management interface based on SFF-8636


Applications

  • 200G Ethernet
  • Switch to switch connectivity
  • High performance computing


Specifications

  • Data rate: 200G (4 x 50 Gbps)
  • Supply voltage: 3.3 V
  • Power consumption: 3.5 W
  • Operating case temperature 0°C – 70°C
  • Reach: 100 m with OM3 fiber
