CloudLight 120G CXP AOC

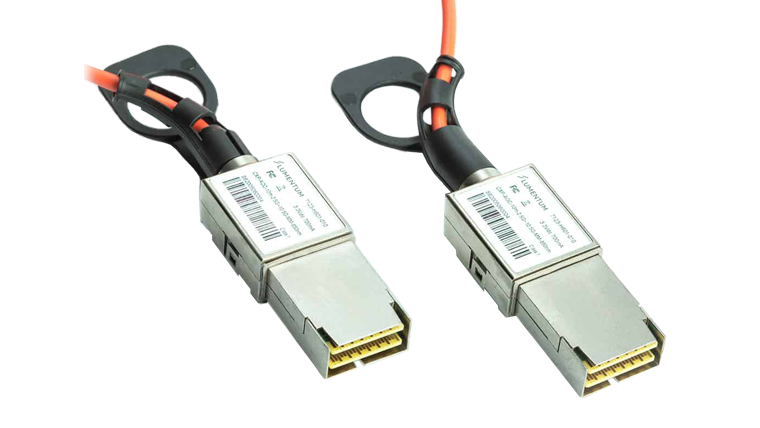

120G CXP AOC

The Lumentum CloudLight™ CXP Active Optical Cable (CXP AOC) is designed to support twelve bidirectional channels, parallel, high-speed for InfiniBand quadruple data rate applications. The AOC supports 10 Gbps per channel for distances from 2 to 100 meters using laser optimized advance high-performance multimode fiber (OM2+). The CXP form factor complies with the InfiniBand Architecture Specifications.

Features

  • Compliant to InfiniBand Architecture Specification (release 1.3)
  • Twelve independent Transmitters, and twelve independent Receivers, all operate at 10 Gbps
  • Bidirectional operation, 12 x 10 Gbps per direction
  • Support transmission distance up to 100 meters
  • Backward-compatible with DDR (12 x 5 Gbps) rates
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C to 70°C
  • I2C communication bus
  • Hot pluggable


Applications

  • InfiniBand QDR (12 x 10 Gbps) interconnect
  • Datacom and Telecom switch or route backplane connection
  • High performance computing interconnect


Specification

  • Data rate: 12 x 10 Gbps
  • Supply voltage: 3.3 V
  • Power consumption: 2.4 W
  • Operating case temperature: 0°C – 70°C
  • 100 m OM2
