CloudLight 100G QSFP28 DR1

100G QSFP28 DR1

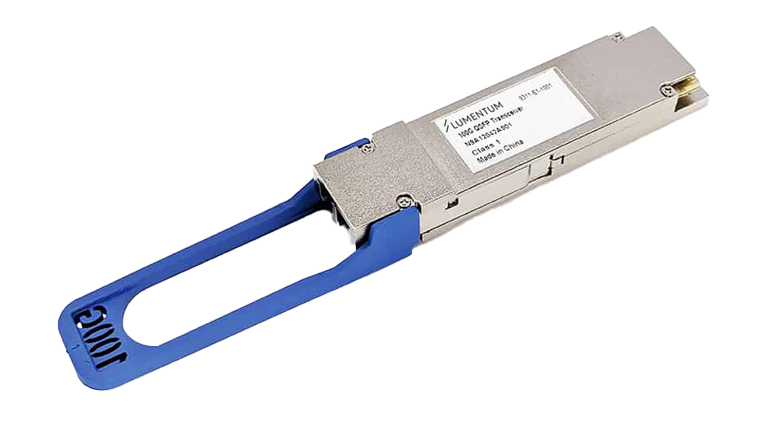

The Lumentum CloudLight™ 100G QSFP28 DR1 series MPO pigtail modules are designed with one 1310 nm EML laser and one photodiode. Its design in the QSFP28 form factor and the electrical interface is based on IEEE802.3 CAUI-4 to module retimed interface. Supporting DR specifications makes it ideally suited for 100G applications where cost-effective high port density is needed. It provides an excellent solution for 100G data transmission up to 500 m over single-mode fiber.
The DDM functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8665.

Features

  • Supports 100G Ethernet
  • Optical interface: 1 x 50 Gbaud (100 Gbps) PAM4
  • Supports RS (544, 514) FEC coder/decoder functions
  • Uncooled EML laser (1310 nm) and PIN photo detector
  • Operating case temperature 0°C to +70°C
  • Supports 500 m transmission with single mode fiber
  • 3.3 V power supply and ≤4.5 W power consumption
  • Compliant with QSFP28 SFF-8665 MSA
  • IEEE 802.3/100G DR1 compliant
  • Digital diagnostic functions (via I2C)
  • Compliant with RoHS
  • Compliant with UL and TUV


Applications

  • 100G Ethernet
  • Data center


Specifications

  • Data rate: 100 Gbps
  • Supply voltage: 3.3 V
  • Power consumption: ≤4.5 W
  • Wavelength: 1310 nm (EML laser)
  • Operating case temperature 0°C to 70°C
  • Reach: 500 m over SM fiber
