CloudLight 100G QSFP28-4xSFP28 AOC

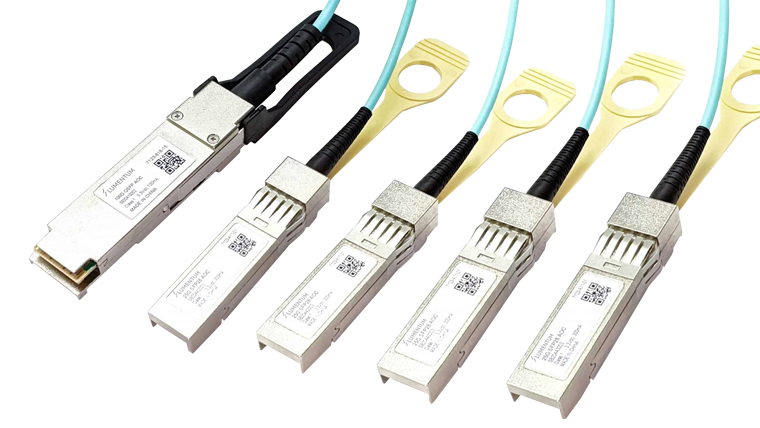

100G QSFP28-4xSFP28 AOC

The Lumentum CloudLight™ 100G to 4 x 25G fanout active optical cable (AOC) is for short-range data communication and interconnect applications. The AOC has one QSFP28 end connected to four SFP28 ends. Each channel operates up to 25 Gbps, and up to 100 m using OM3 fiber.

Features

  • QSFP28 to four SFP28 AOC assembly
  • Each QSFP28 lane connected to a separate SFP28 device
  • Each bidirectional lane supports 25.78125 Gbps and is IEEE compliant
  • Enabled by 850 nm VCSEL
  • Operating case temperature 0°C – 70°C
  • Hot pluggable
  • Low power consumption
  • Transmission distance up to 100 m with OM3 MM fiber
  • Laser eye safety Class 1


Applications

  • 25G Ethernet aggregation
  • Server-to-switch connectivity
  • Data center interconnects


Specifications

  • Data rate: 100G and 25G
  • Supply voltage: 3.3 V
  • Power consumption: QSFP28=1.8 W, SFP28=0.6 W
  • Operating case temperature: 0°C – 70°C
  • Reach: 100 m with OM3 fiber
